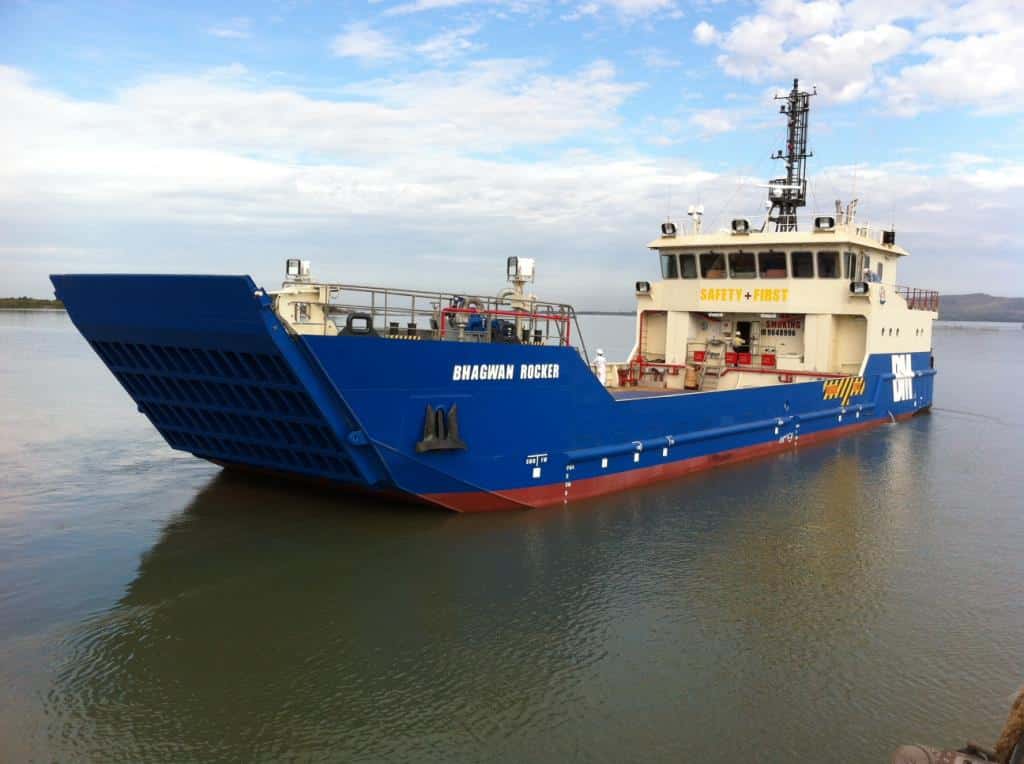

Bhagwan Rocker


Primary Information

Secondary Name:
LCT Barge
Vessel Type:
Landing Craft
Classification:
ABS: A1, AMS, ABCU
IMO:
9648996
MMSI:
503768000
Builder:
Strategic Marine
Build Location:
Vietnam
Year Built:
2012
Flag:
Australian
Trading Area:
Unrestricted Navigation
Call Sign:
VJN3773
M & H Number:
7063
Schematics (GA):
Dimensions

Length Overall:
38
 Metres
Beam:
10.6
 Metres
Depth Moulded:
2.8
 Metres
Design Draft:
2
 Metres
GRT:
372
 Tonnes
Dead Weight:
262.2
 Tonnes


Machinery

Propulsion:
Twin Screw
Main Engines:
2x Cummins QSK19
Total Power:
746
 KW
Gear Box:
ZF
Generator:
2x Cummins 6BT
Bowthruster:
N/A
Speed and Consumption Performances

Full Operating Speed:
10 Kts @ 160 Lts/Hr
Economic Operating:
8 Kts @ 120 Lts/Hr
In Port:
250 Lts/Day
Bollard Pull:
N/A
 Tonnes
Capacities

Fuel:
240,000
 Litres
Water:
120,000
 Litres
Sullage:
5,000
 Litres
Water Ballast:
54,000
 Litres
Lube Oil:
9,500
 Litres
Dirty Oil:
9,500
 Litres
Bilge Water:
1,060
 Litres
Clear Deck:
200
 Metres Sq.
Deck Load Rating:
10
 Tonne/Sq. Metre
Max Deck Cargo:
212
 Tonnes


Cargo Discharge Pumps

Fuel Cargo:
80 M³/Hour @ 6.0 Bar
Freshwater:
80 M³/Hour @ 6.0 Bar
Accommodation

Berths:
8


Nautical and Communication Equipment

Radar System:
Furuno 96nm X Band
Depth Sounder:
Furuno FE-700
GPS:
Furuno GP-150
DGPS:
N/A
Compass:
Gyro – Tokimec TG800/8500 Auto
Chart Plotter:
Maxsea
AIS:
Furuno FA-150
HF Radio:
Furuno FS-1750
VHF Radio:
2x Furuno FM-8800S
GMDSS:
Furuno Area A3
Sat Comms:
Thrane & Thrane
Searchlight(s):
Color-Light CL25-12
Other:
Airconditioned


The data on this specification is published in good faith and for general information purpose only.
It does not warrant its accuracy or completeness and to the full extent allowed by law excludes liability.

Charter enquiries can be directed to our Commercial Department
Phone: +61 8 9965 9700   Fax: +61 8 9965 4545   Email: commercial@bhagwanmarine.com

Specification ID:  70     Revision:  0
